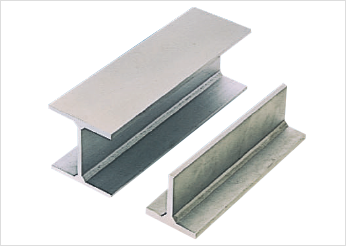

Beam
Characteristics of H-beams

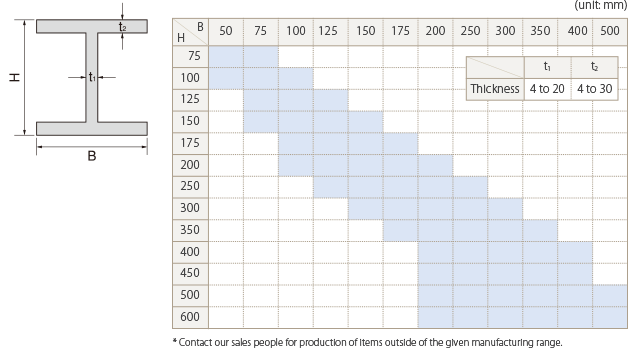

- 1. Product sizes

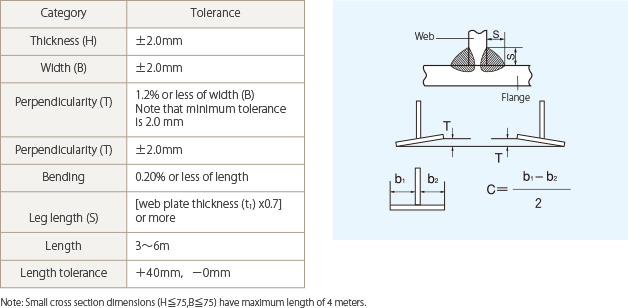

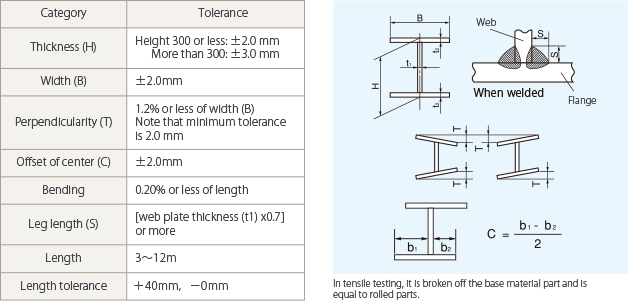

- 2. Product specifications

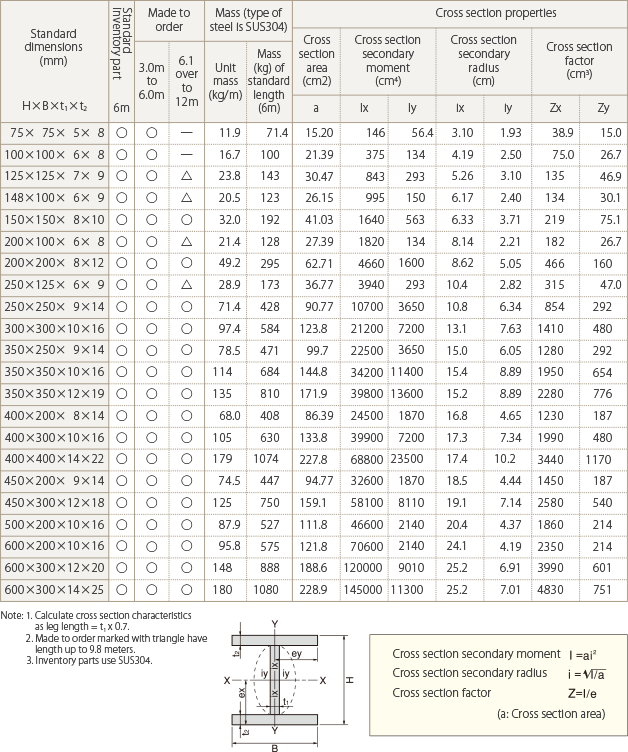

- 3. Standard dimensions and cross section properties (Reference)
Characteristics of T-bars

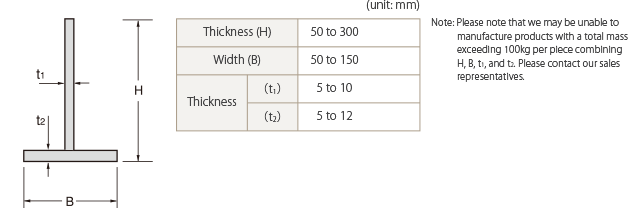

- 1. Product sizes
- 2. Product specifications

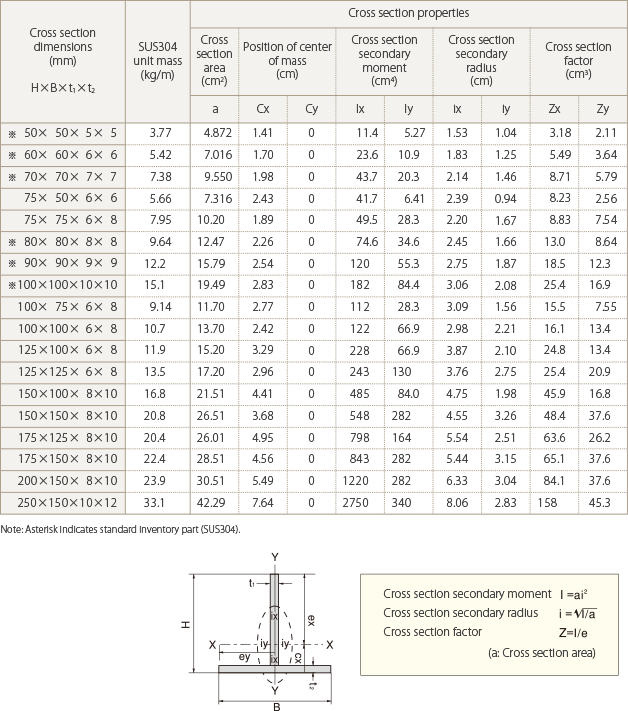

- 3. Cross section properties (Reference)
Applications

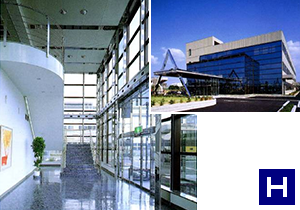

| Application | Aichi Steel Foundry OfficeGirders, curtain wall mullions |
|---|---|
| Field | Building construction |
| Shape | Welded H |
| Type of steel | SUS304A |
| Reason | Corrosion resistance, design characteristics |

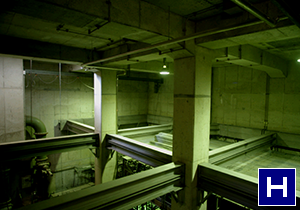

| Application | Sewage treatment pumping station seismic reinforcement |
|---|---|
| Field | Building construction |
| Shape | Welded H |
| Type of steel | SUS304A |
| Reason | Corrosion resistance, total cost of ownership |

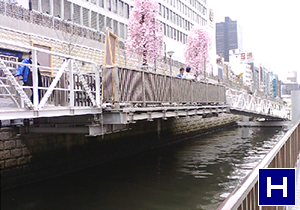

| Application | Overhanging pier |
|---|---|
| Field | Civil engineering |
| Shape | Welded H |
| Type of steel | SUS304 |
| Reason | Corrosion resistance, total cost of ownership |

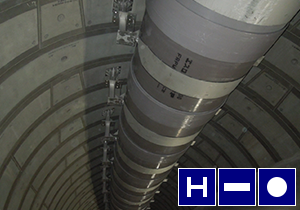

| Application | Furukawa underground reservoir ventilation duct support fittings |
|---|---|
| Field | Civil engineering |
| Shape | Welded H, Flat, Round, etc. |
| Type of steel | SUS304 |
| Reason | Corrosion resistance |

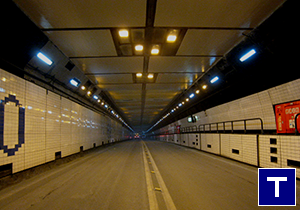

| Application | Kanmon Tunnel ceiling plate brackets |
|---|---|
| Field | Civil engineering |
| Shape | Welded T |
| Type of steel | SUS304 |
| Reason | Corrosion resistance, total cost of ownership |

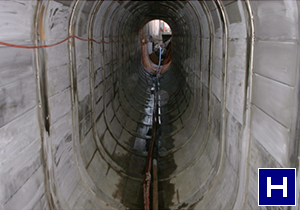

| Application | Rainwater weir improvement construction: supports |
|---|---|
| Field | Civil engineering |
| Shape | Welded H |
| Type of steel | SUS304 |
| Reason | Corrosion resistance, total cost of ownership |
